Name: Refillable Filter Cartridge Shells
Availability: OutOfStock

‌
‌
‌
‌
‌

Description

Additional Information

PDF

Refillable filter cartridge shell B2B-Product Description

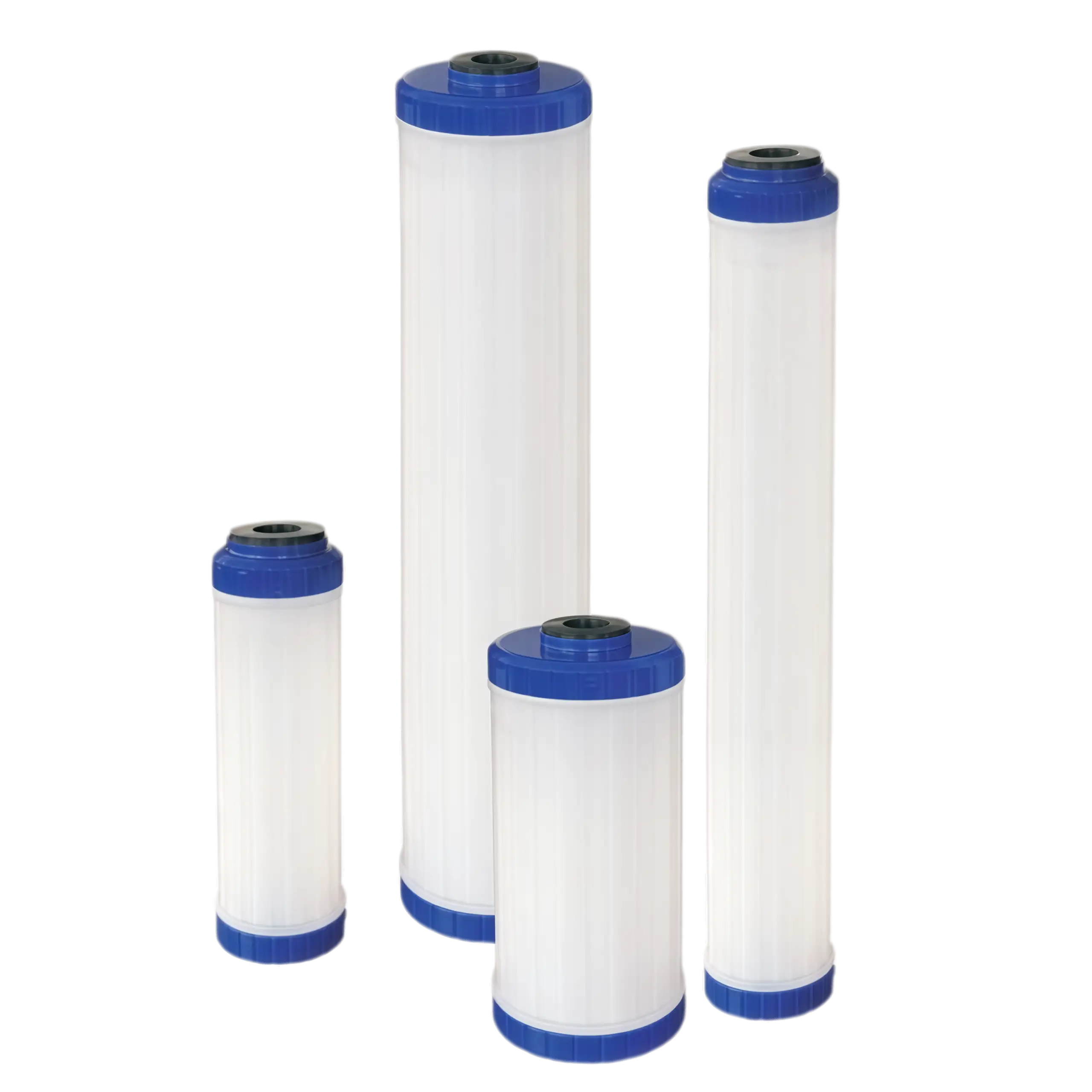

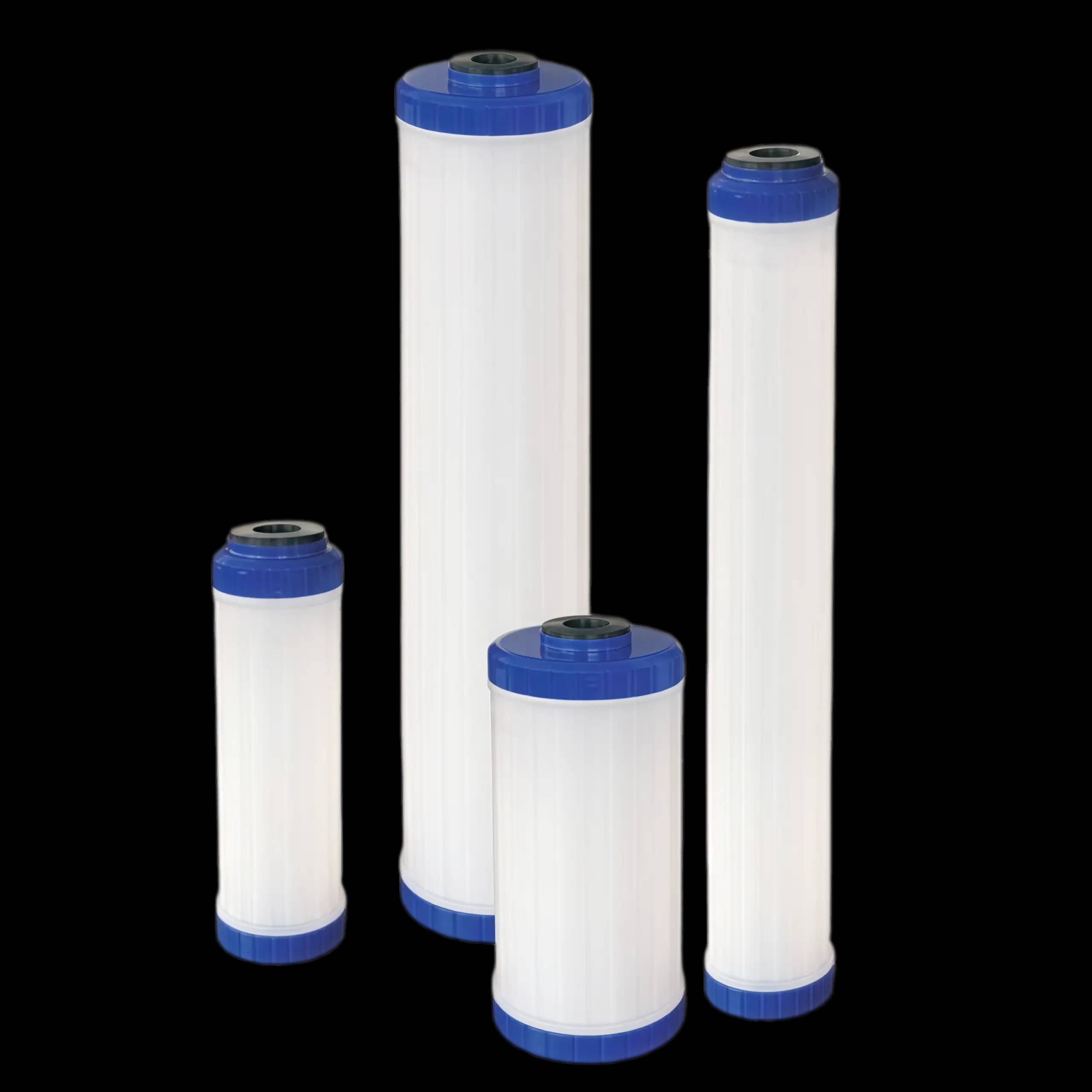

Refillable Filter Cartridge Shells
Designed to fit standard-sized filter housings. These cartridge shells can be filled with your choice of filtration or treatment media to create a custom filter tailored to your specific needs. Built-in pre- and post-filter elements prevent media loss and ensure stable operation.

Features

Supports unlimited combinations of filter media for custom solutions
Built-in pre- and post-filter elements prevent media loss
Standard cartridge design fits most residential, commercial, and industrial filter housings

Applications

Water softening
Bacteria control
Scale & corrosion control
PFAS removal
Taste, odor & chlorine removal
Chloramine removal

Replaceable media filter housing-Product Specifications

General Dimensions

Length: 5" / 10" / 20" / 30" / 40"
Outer Diameter: 69 mm
Filtration Area: 0.8 m² per 10" filter

refillable filter cartridge shell B2B

Materials of Construction

End Cap: Polypropylene (PP)
Cage: Polyethylene (PE)
Pre-Filter: Polyurethane Foam
Post-Filter: Polypropylene (PP)
Gasket: EPDM

Operating Temperature

4°C to 45°C

Available Media Options

Activated Carbon / KDF
Ion-exchange resin
Phosphate, Silicates
Absorbent media
pH control media
Anti-microbial compounds

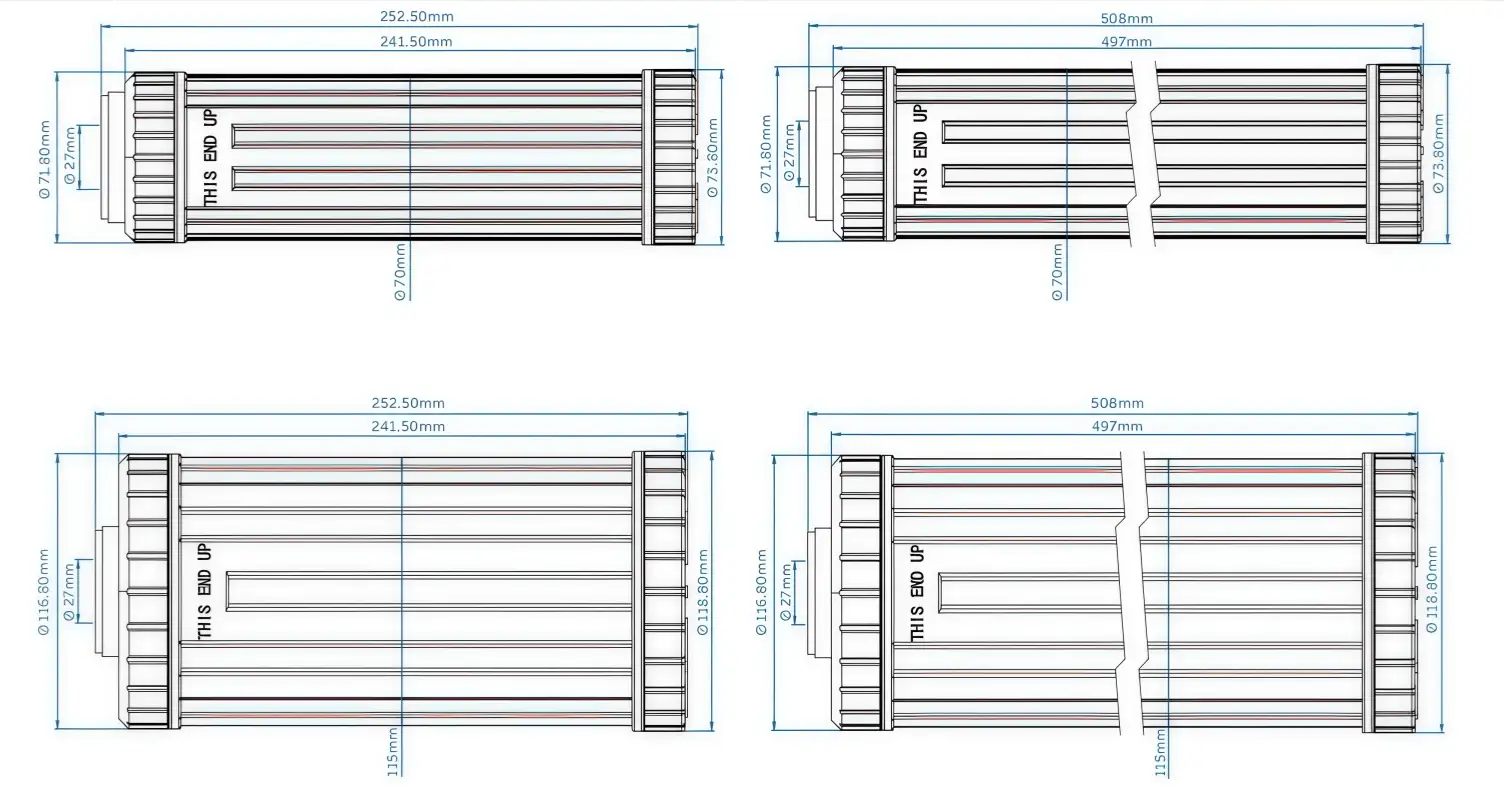

Model Specification Table

Model	Outer Diameter (mm)	Length (mm)	Volume (ml)
RF10010	70	252.5	550
RF10020	70	508	1480
RF20010	115	252.5	1540
RF20020	115	508	4100

Operating temperature for all models: 4°C – 45°C

OEM refillable filter housing-Model Number Coding

Example: RF10010

RF – Refillable Filter Cartridge Shell
100 – Outer Diameter 2.5"
200 – Outer Diameter 4.5"
10 – Length 10"
20 – Length 20"

refillable filter cartridge shell B2B
