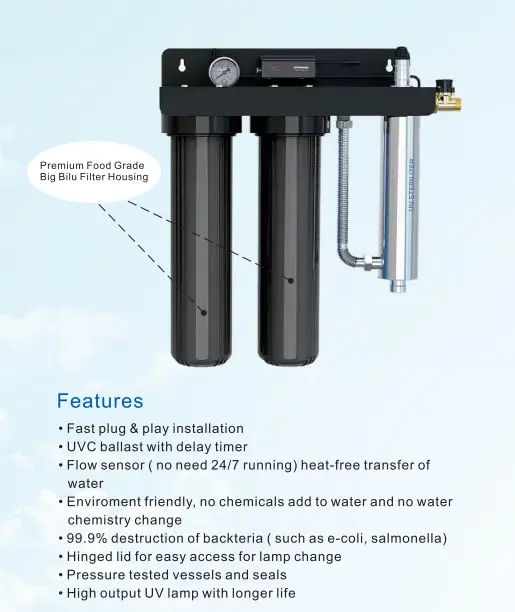

Product Features and Advantages:

  • Enhanced UV-C Technology: This system delivers a powerful UV-C light to remove up to 99.9% of harmful bacteria, ensuring your home’s water is safe and clean.

  • Higher Flow Rate: The 8 GPM flow rate caters to households with high water usage, providing continuous clean water throughout the day.

  • Compact Design: Space-efficient, making it perfect for homes with limited space, while still providing excellent performance.

  • Eco-Friendly: Uses no chemicals in the water, making it a safe and environmentally conscious choice for water purification.

  • User-Friendly: Easy installation and maintenance, with a hinged lid that allows quick access to the UV lamp.

  • Flow Rate:

    • Maximum rated flow at dose of 16mJ/cm²: 11 GPM

    • Maximum rated flow at dose of 30mJ/cm²: 8 GPM

    • Maximum rated flow at dose of 40mJ/cm²: 6 GPM

  • Electrical:

    • Voltage: 100-240VAC

    • Frequency: 50/60Hz

    • Maximum power consumption: 45W

    • Lamp Power: 33W

  • Service Features:

    • Visual Power on: Yes

    • Electronic Controller: Yes

    • Flow Sensor: Yes

    • Audible Lamp Failure: Yes

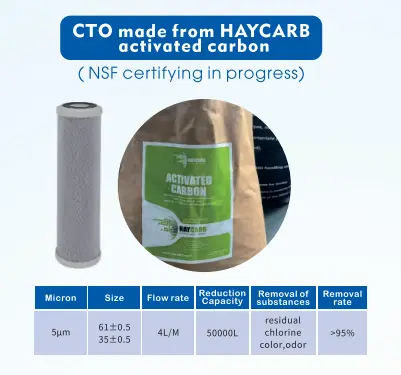

    • Filter: PP+GAC+UV

    • Product Dimensions: 800×220×670mm

TOPUV-204S 	Whole house 20'' 4-stage with UVTOPUV-204S 	Whole house 20'' 4-stage with UV

People who viewed this also viewed

Whole-house UV water purification 10''3-stage
Whole-house UV water purification 10''3-stage

·UV Chamber Material: SS304

·Inlet/Outlet Size: 3/4" & 1" BSPT

·Operation Pressure: 4-100 PSI

·Ambient Air Temperature: 2°C - 50°C

·Maximum Humidity: 95%

·Maximum Hardness: 120 ppm

·Maximum Iron: 0.3 ppm

·Minimum UVT: 75%

Whole-house UV water purification 20''3-stage
Whole-house UV water purification 20''3-stage

·UV Chamber Material: SS304

·Inlet/Outlet Size: 3/4" & 1" BSPT

·Operation Pressure: 4-100 PSI

·Ambient Air Temperature: 2°C - 50°C

·Maximum Humidity: 95%

·Maximum Hardness: 120 ppm

·Maximum Iron: 0.3 ppm

·Minimum UVT: 75%

Whole-house UV water purification 10'' 4-stage
Whole-house UV water purification 10'' 4-stage

·UV Chamber Material: SS304

·Inlet/Outlet Size: 3/4" & 1" BSPT

·Operation Pressure: 4-100 PSI

·Ambient Air Temperature: 2°C - 50°C

·Maximum Humidity: 95%

·Maximum Hardness: 120 ppm

·Maximum Iron: 0.3 ppm

·Minimum UVT: 75%
