📊 Product Specifications
| Item | Specification |
|---|---|
| Model | INTOP W2904-3C |
| Filtration System | RO System: PP+CTO+RO Membrane+T33 UF System: PP+CTO+UF Membrane+T33 |
| RO Membrane Specification | 75GPD |
| Booster Pump | E-CHEN, 75GPD |
| Heating Power/Output | 420W, 5L/H (85–95°C) |
| Cooling Power/Output | 90W, 2L/H (5–10°C) |
| Water Tank Capacity | Hot water 1.5L + Cold water 1.5L + Room temperature water 3.0L |
| Operating Voltage | 24V DC |
| Inlet Water Pressure | 0.1–0.4 MPa |
| Water Output Flow | 7.8L/H |
| pH Compatibility Range | 6–8+ |
| Housing Material | Galvanized steel sheet + ABS plastic |
| Inner Tank Material | 304 stainless steel stretch type |
| Compressor Brand | Asbeila |
| Product Dimensions | 420×290×520 mm |
| Package Dimensions | 480×330×560 mm |
| Unit Weight | 16.5 kg |
| Packaging | Standard export carton box |

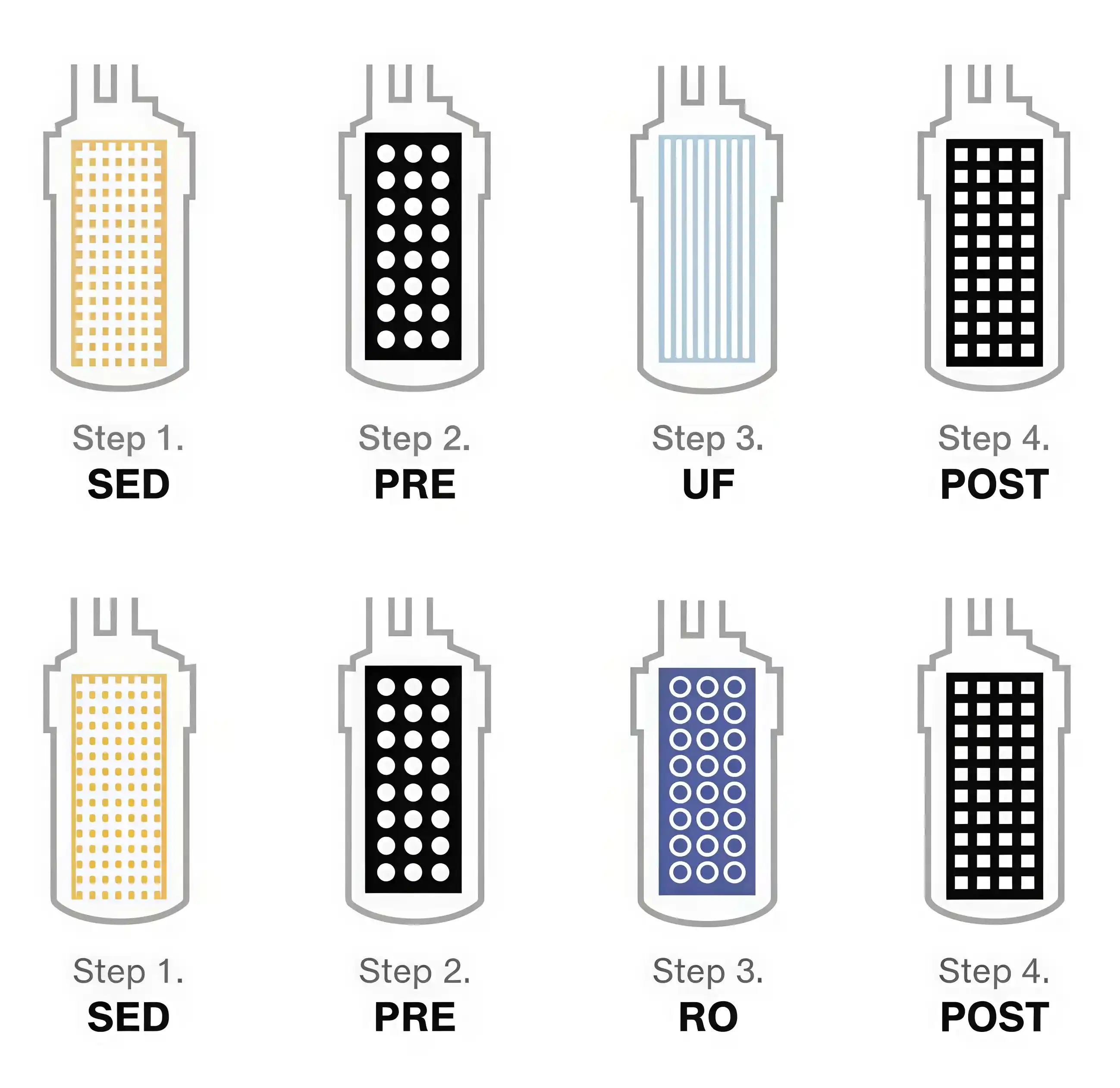

🧪 Filtration Process Description
RO System - Four-Stage Filtration:
-
SED Filter – Filters large particles such as sand and rust
-
PRE Activated Carbon – Adsorbs chlorine and odors
-
RO Reverse Osmosis Membrane – Removes heavy metals, bacteria, viruses
-
POST Post-Carbon – Improves taste, enhances water sweetness
UF System - Four-Stage Filtration:
-
SED Filter – Pre-filtration
-
PRE Activated Carbon – Chemical adsorption and purification
-
UF Ultrafiltration Membrane – Retains minerals, filters bacteria
-
POST Post-Carbon – Taste optimization
🏭 Suitable Applications
-
Offices, meeting rooms, break areas
-
Hotel rooms, restaurants, lobbies
-
Schools, hospitals, public places
-
Home kitchens, living room drinking points
-
Factory workshops, employee drinking stations
✅ Quality Assurance
-
Premium Core Components – Asbeila compressor, E-CHEN water pump
-
Safety Protection Design – Child lock, leakage protection, overheating protection
-
OEM/ODM Support – Customizable appearance and functions
-
Export Standard Packaging – Suitable for long-distance sea and land transportation
🛠️ Installation & Usage
-
Supports wall-mounted and countertop installation
-
Built-in filter replacement reminder function
-
One-touch control operation, instant water output
-
Adaptable to water pH 6–8+, stable operation
