Product Overview
This 500LPH Reverse Osmosis (RO) System is specifically engineered for hotel applications, providing high-quality pure water for drinking, cooking, and guest amenities. It features a robust stainless steel frame and a full-process microcomputer control system. The system utilizes a multi-stage filtration process (PP + Activated Carbon + Sediment + RO Membrane) to ensure 97% desalination efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TOP-MS Series |
| Capacity | 250 LPH / 500 LPH / 1000 LPH (Optional) |
| Raw Water TDS | < 500 ppm |
| Desalination Rate | 97% |
| Recovery Rate | 60% |
| Voltage | 220V 50Hz 3 Phase / 110V 60Hz 3 Phase (Customizable) |
| Power | Standard (Depends on capacity) |
| Inlet/Waste Pipe | 3' or 4' |
| Frame Material | Stainless Steel |
| RO Membrane | 4040 |
| Control System | Full-process Microcomputer Control Display |
| Dimensions | 63 * 88 * 170 cm |
| Weight | 140 Kgs (for 500LPH model) |

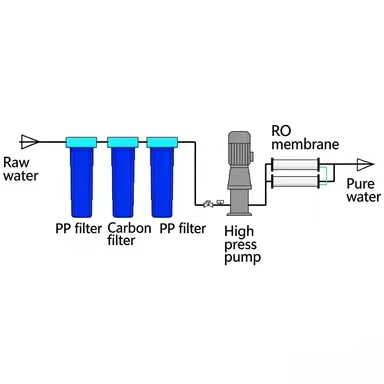

Process Flow
Tap Water → PP Filter → Activated Carbon Filter → Sediment Filter → RO Membrane → Pure Water
Configuration List
| No. | Name | Model | Unit | Qty | Material |
|---|---|---|---|---|---|
| 1 | PP Filter | 20 inch | PCS | 1 | ABS |
| 2 | Activated Carbon | 20 inch | PCS | 1 | ABS |
| 3 | Sediment Filter | 20 inch | PCS | 1 | ABS |
| 4 | High Pressure Pump | EVP2-8 | PCS | 1 | LEO |
| 5 | RO Membrane | 4040 | PCS | 1 | - |
| 6 | Frame | - | SET | 1 | Stainless Steel |
Key Features
-
Integrated Design: Combines pre-filtration and RO membrane in one compact unit, saving installation space.
-
High Efficiency: 97% desalination rate ensures pure and safe water for hotel operations.
-
Durable Construction: Stainless steel frame resists corrosion and extends equipment lifespan.
-
Smart Operation: Microcomputer control panel provides easy monitoring and automatic operation.
-
Hotel Specific: Ideal for hotels requiring reliable water quality for guests and kitchen operations.
Applications
-
Hotel Guest Rooms
-
Hotel Restaurants & Kitchens
-
Laundry Services
-
Spa & Wellness Centers
