Name: 1000LPH Commercial RO Water Treatment System with Pretreatment
Availability: OutOfStock

Product Overview

This TOP-MD Series Reverse Osmosis (RO) System is a complete water treatment solution designed for hotels, resorts, and commercial facilities. Unlike basic RO units, it includes a full pretreatment stage consisting of a Quartz Sand Filter, Activated Carbon Filter, Water Softener, and Sediment Filter. This makes it capable of handling raw water with TDS up to 2000ppm. The system features a robust stainless steel frame and a full-process microcomputer control system, ensuring 97% desalination efficiency and reliable performance.

Technical Specifications

Parameter	Specification
Model	TOP-MD Series
Capacity	250 LPH / 1000 LPH
Raw Water TDS	< 2000 ppm
Desalination Rate	97%
Recovery Rate	60%
Voltage	220V 50Hz 3 Phase / 110V 60Hz 3 Phase (Customizable)
Inlet/Waste Pipe	3' or 4'
Frame Material	Stainless Steel
RO Membrane	4040 (2 PCS)
Control System	Full-process Microcomputer Control Display
Pretreatment Tank	FRP (Fiberglass Reinforced Plastic)
Dimensions	162 * 78 * 172 cm
Weight	360 Kgs

Process Flow

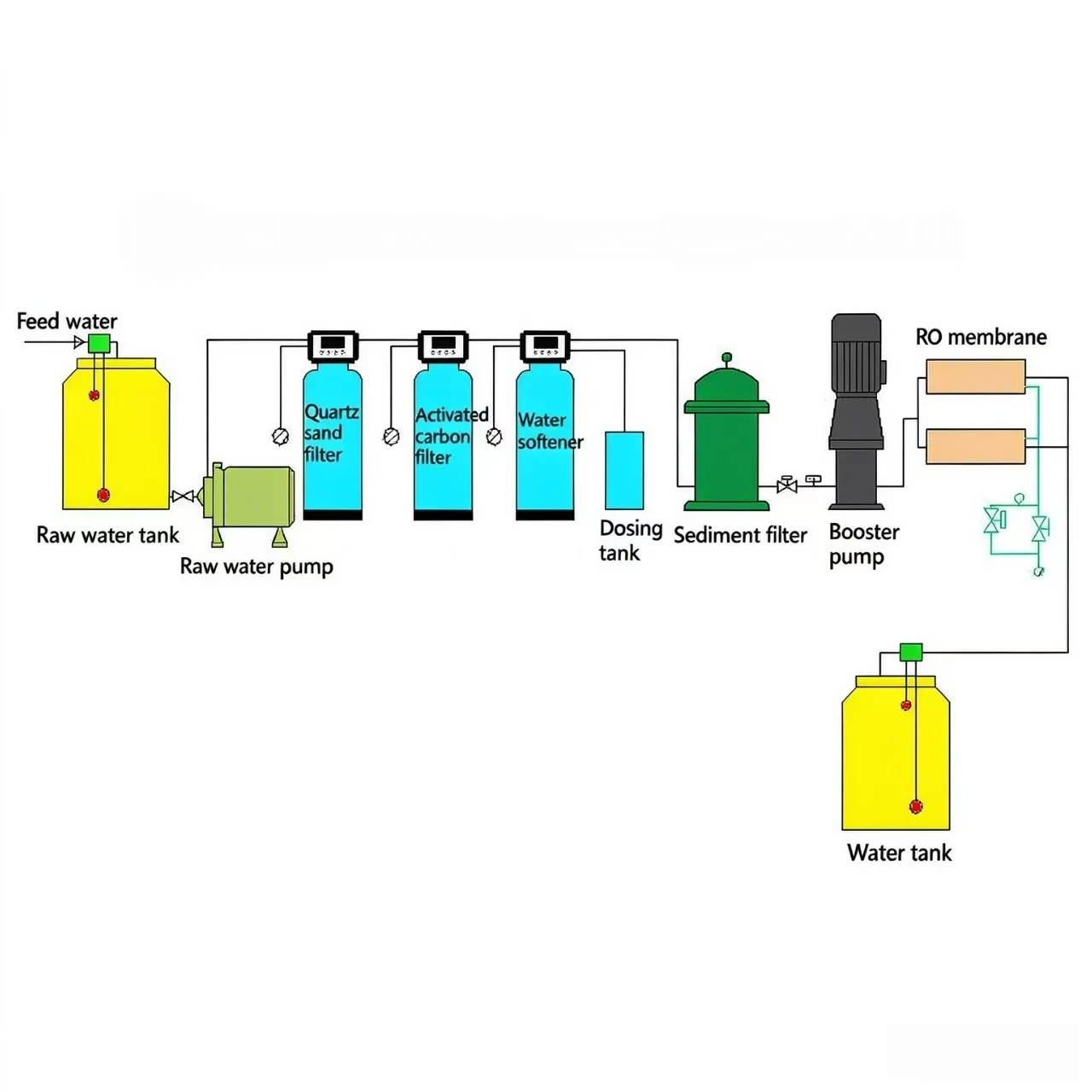

Feed Water → Raw Water Tank → Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Water Softener → Dosing Tank → Sediment Filter → Booster Pump → RO Membrane → Pure Water Tank

Configuration List (Main Components)

No.	Name	Model	Qty	Unit	Brand	Material/Note
1	Raw Water Pump	CHL2-40	1	Set	Nanbeng	304 Stainless Steel
2	Sand Filter	250*1400	1	Set	RXT	FRP / Quartz Sand 100KG / Auto Valve F71B
3	Activated Carbon Filter	250*1400	1	Set	RXT	FRP / Activated Carbon 25KG / Auto Valve F71B
4	Water Softener	250*1400	1	Set	RXT	FRP / Resin 001*750L / Auto Valve F65B / Salt Tank 60L
5	Sediment Filter	20 inch	1	Set	ABS	-
6	High Pressure Pump	CDLS2-11	1	Set	Nanbeng	304 Stainless Steel
7	RO Housing	4040	2	PCS	GYR	304 Stainless Steel
8	RO Membrane	4040	2	PCS	GYR	-
9	Pressure Gauge	0-2.5MPA	2	Set	-	Oil-filled
10	Flow Meter	5GPM	2	Set	-	Panel Mount
11	Solenoid Valve	DN15	2	Set	-	Brass
12	Adjustment Valve	DN15	2	Set	-	Brass
13	Low Pressure Valve	-	1	Set	-	-
14	Control System	-	1	Set	GYR	-

Key Features

Comprehensive Pretreatment: Includes Sand Filter, Carbon Filter, Softener, and Sediment Filter to effectively remove big particles, suspended substances, colloids, color, odor, residual chlorine, and organics.
High Efficiency: 97% desalination rate ensures high-purity water for hotel operations.
Durable Construction: Stainless steel frame and FRP tanks resist corrosion and extend equipment lifespan.
Smart Operation: Microcomputer control panel provides easy monitoring and automatic backwashing.
Stable Supply: Designed with raw water tank and booster pump to ensure stable and continuous water supply.

Applications

Hotel Guest Rooms
Hotel Restaurants & Kitchens
Laundry Services
Spa & Wellness Centers
Commercial Buildings
